Χαρακτηριστικά
• FD High Pressure Fog Misting Nozzles thread size can be made as 3/16", 10/24", 12/24"
• FD High Pressure Fog Misting Nozzles can be used indoor and outdoor.
• Not easy become clogging, no leakage, good wear resistance, uniform spray.
• This series of nozzles does not need air supply.
• The system is simple; the spray mist is fine, full atomization, energy saving, • Stainless steel micro-nozzle plate is processed by advanced forging process and has strong durability. It is 2.5 times longer than the same type of nozzle.
Ακροφύσια ομίχλης υψηλής πίεσης FD |
Ακροφύσια ομίχλης υψηλής πίεσης |
Γενική Εφαρμογή
• Wetting and descaling
• Humidification
• Chemical treatment or spraying
• Liquid spraying
• Garden park or agricultural humidification or cooling
• Tablet coating
• Flue gas evaporating cooling
• Sterilization
• Fruit spray Wax
• Wetting and cooling of textile mills
• Plant humidification
• Salt spray test
• Artificial fog
Περιγραφή
|
Μοντέλο |
FD ( High pressure) 3/16'', 10/24 '', 12/24'' FD ( Low pressure) Quick connect (6mm, 8mm ) |
|
Σύνδεση εισόδου |
1/8''; 3/16''; 10/24''; 12/24'' |
|
Άνοιγμα διά. |
{{0}}.8mm/0.5mm/0.4mm/0.3mm/{{1{0}}.2mm/0,15 mm/0,1 mm |
|
Πίεση νερού |
100bar/84bar/70bar/50bar/35bar/18bar/15bar/10bar/7bar/4bar/3bar |
Παράμετρος
|
Μέγεθος νήματος |
Στυλ ΟΧΙ. |
Orifice Dia. |
Ρυθμός ροής (L/min) |
|||||||||||
|
mm |
3 bar |
4 bar |
7 bar |
10 bar |
15 bar |
18 bar |
35 bar |
50 bar |
70 bar |
84 bar |
100 bar |
120 bar |
||
|
- |
1010 |
0.1 |
- |
- |
- |
- |
- |
- |
0.01 |
0.02 |
0.03 |
0.04 |
0.05 |
0.06 |
|
1/8 |
1510 |
0.15 |
- |
- |
- |
- |
- |
0.02 |
0.03 |
0.04 |
0.05 |
0.051 |
0.059 |
0.075 |
|
3/16 |
2010 |
0.2 |
- |
- |
- |
- |
0.05 |
0.06 |
0.07 |
0.08 |
0.09 |
0.098 |
0.10 |
0.114 |
|
10/24 |
3010 |
0.3 |
- |
- |
- |
0.06 |
0.07 |
0.08 |
0.09 |
0.10 |
0.11 |
0.16 |
0.166 |
0.176 |
|
12/24 |
4010 |
0.4 |
0.07 |
0.09 |
0.12 |
0.15 |
0.18 |
0.20 |
0.22 |
0.25 |
0.28 |
0.38 |
0.39 |
0.41 |
|
- |
5010 |
0.5 |
0.08 |
0.10 |
0.13 |
0.16 |
0.19 |
0.21 |
0.23 |
0.26 |
0.30 |
0.39 |
0.40 |
0.42 |
|
- |
6010 |
0.6 |
0.09 |
0.12 |
0.14 |
0.17 |
0.20 |
0.23 |
0.27 |
0.32 |
0.38 |
0.49 |
0.50 |
0.52 |
|
- |
8010 |
0.8 |
0.11 |
0.13 |
0.15 |
0.18 |
0.22 |
0.26 |
0.30 |
0.36 |
0.48 |
0.59 |
0.60 |
0.62 |

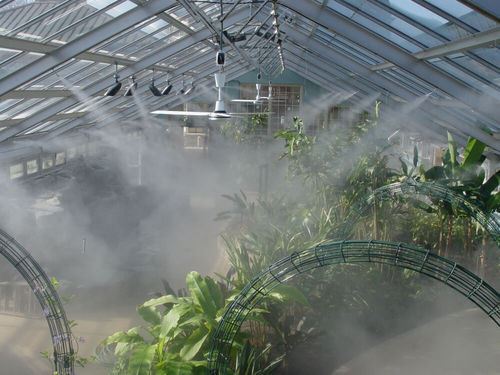

Εικόνες εφαρμογής
Υγραντικό |
Ψύξη |
